HPW Hight Pressure Water Hose


Application:
 HPW 100 Series: Used for high pressure water applications where pressure do not exceed 100 bar (1420 psi)
HPW 150 Series: Used for high pressure water applications where pressure do not exceed 150 bar (2100 psi)
HPW 200 Series: Used for high pressure water applications where pressure do not exceed 200 bar (2800 psi)
 Temperature:
 -5 degree C to + 60 degree C
Inner tube:
 Polyethylene(PU) or TPE
Reinforcement:
 One braid of polyester fiber
Cover:
 Black PVC or TPE

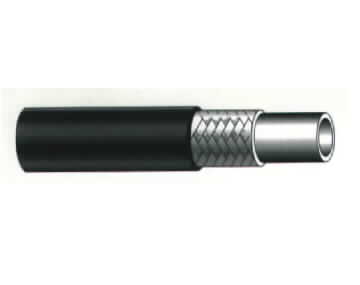

AH01171.jpg HPW100 Series AH01174.jpg

Item No. Hose Size Max. Working Pressure
(bar)		 Min. Burst Pressure
(bar)		 Length
(m)
I.D. O.D.
HPW100A01 5.5 mm 11.0 mm 100 400 6,8,10,12,15
HPW100A02 6.5 mm 12.0 mm 100 400 6,8,10,12,15
HPW100A03 8.0 mm 13.5 mm 100 400 6,8,10,12,15
HPW100A04 9.5 mm 15.0 mm 100 400 6,8,10,12,15

Item No. Hose Size Max. Working Pressure
(psi)		 Min. Burst Pressure
(psi)		 Length
(ft)
I.D. O.D.
HPW100B01 .22" .43" 1420 5680 20,25,30,40,50
HPW100B02 1/4" .47" 1420 5680 20,25,30,40,50
HPW100B03 5/16" .53" 1420 5680 20,25,30,40,50
HPW100B04 3/8" .62" 1420 5680 20,25,30,40,50

AH01172.jpg HPW150 Series AH01174.jpg

Item No. Hose Size Max. Working Pressure
(bar)		 Min. Burst Pressure
(bar)		 Length
(m)
I.D. O.D.
HPW150A01 5.5 mm 11.0 mm 150 600 6,8,10,12,15
HPW150A02 6.5 mm 12.0 mm 150 600 6,8,10,12,15
HPW150A03 8.0 mm 13.5 mm 150 600 6,8,10,12,15
HPW150A04 9.5 mm 15.0 mm 150 600 6,8,10,12,15

Item No. Hose Size Max. Working Pressure
(psi)		 Min. Burst Pressure
(psi)		 Length
(ft)
I.D. O.D.
HPW150B01 .22" .43" 2100 8400 20,25,30,40,50
HPW150B02 1/4" .47" 2100 8400 20,25,30,40,50
HPW150B03 5/16" .53" 2100 8400 20,25,30,40,50
HPW150B04 3/8" .62" 2100 8400 20,25,30,40,50

AH01173.jpg HPW200 Series AH01174.jpg

Item No. Hose Size Max. Working Pressure
(bar)		 Min. Burst Pressure
(bar)		 Length
(m)
I.D. O.D.
HPW200A01 5.5 mm 11.0 mm 200 800 6,8,10,12,15
HPW200A02 6.5 mm 12.0 mm 200 800 6,8,10,12,15
HPW200A03 8.0 mm 13.5 mm 200 800 6,8,10,12,15
HPW200A04 9.5 mm 15.0 mm 200 800 6,8,10,12,15

Item No. Hose Size Max. Working Pressure
(psi)		 Min. Burst Pressure
(psi)		 Length
(ft)
I.D. O.D.
HPW200B01 .22" .43" 2800 11200 20,25,30,40,50
HPW200B02 1/4" .47" 2800 11200 20,25,30,40,50
HPW200B03 5/16" .53" 2800 11200 20,25,30,40,50
HPW200B04 3/8" .62" 2800 11200 20,25,30,40,50

HPS High Pressure Paint Spray Hose

Application:
 HPS 200 Series: Airless paint hose, high volumetric expansion rate and long impulse life tube resists paints lacquers and thinners.
HPS 250 Series: Static conductive airless paint spray hose, high volumetric expansion rate and long impulse life, tube resists paints lacquers and thinners, has a rating of only one ohm/ft of electrical resistance.
Temperature:
 -40 degree F to + 180 degree F
Inner tube:
 Polyamide
Reinforcement:
 HPS200 - One braid of synthetic fiber
HPS250 - Two braid of synthetic fiber, one braid electrically conductive polyethlene compound
Cover:
 Black or red polyurethane

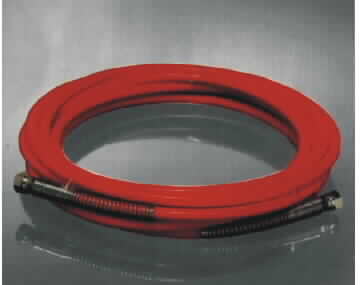

AH01181.jpg HPS 200 Series AH01182.jpg HPS 250 Series AH01185.jpg

Item No. Hose Size Max. Working Pressure Min. Burst Pressure Length
I.D. O.D.
HPS200A01 6.4 mm 12.7 mm 207 bar 828 bar 7,10,15 m
HPS200B01 1/4" 1/2" 3000 psi 12000 psi 25,30,50 ft

Item No. Hose Size Max. Working Pressure Min. Burst Pressure Length
I.D. O.D.
HPS250A01 6.4 mm 13 mm 250 bar 1000 bar 7,10,15 m
HPS250B01 1/4" .51" 3600 psi 14400 psi 25,30,50 ft

HPG High Pressure Grease Gun Connecting Hose

Application:
 Soft of Grease hose with fitting connector in both end, thread 1/8" bsp, mid x 1, 1/8" npt
Temperature:
 -40 degree C to + 90 degree C
Inner tube:
 Polyamide or polyester elastomer(Dupon)
Reinforcement:
 One braid of polyester fiber, two braid of polyester fiber(HPG510A01 only)
Cover:
 Black polyurethane
AH01183.jpg AH01185.jpg

Item No. Hose Size Max. Working Pressure Min. Burst Pressure Length
I.D. O.D.
HPG240A01 3.5 mm 8.2 mm 3500 psi 14000 psi 6",8",10",12",18"(mark A)
HPG240A02 4.8 mm 10.8 mm 3500 psi 14000 psi 6",8",10",12",18"(mark A)
HPG310A01 3.5 mm 8.4 mm 4500 psi 18000 psi 6",8",10",12",18"(mark A)
HPG310A02 4.8 mm 11 mm 4500 psi 18000 psi 6",8",10",12",18"(mark A)
HPG510A01 3.5 mm 8.6 mm 7500 psi 22000 psi 6",8",10",12",18"(mark A)

HPH High Pressure Hydraulic Hose

Application:
 Used on high pressure hydraulic systems which require a nylon tube
Temperature:
 -40 degree F to + 200 degree F
Inner tube:
 Polyamide or polyester elastomer(Dupon)
Reinforcement:
 One braid of polyester fiber
Cover:
 Black abrasion resistant polyurethane
AH01184.jpg AH01174.jpg

Item No. Hose Size Max. Working Pressure Min. Burst Pressure Length
I.D. O.D.
HPH200B01 1/8" .32" 3000 psi 12000 psi 330,600 ft
HPH200B15 3/16" .45" 3000 psi 12000 psi 330,600 ft
HPH200B20 1/4" .50" 2750 psi 11000 psi 330,600 ft
HPH200B25 5/16" .58" 2500 psi 10000 psi 330 ft
HPH200B30 3/8" .65" 2250 psi 9000 psi 330 ft
HPH200B40 1/2" .82" 2000 psi 8000 psi 330 ft
